On-premise System Architecture

The core of what we’re offering is two OCI images which we distribute from our own image repository. During the creation of the images they are automatically tested by our pipeline and then scanned by our repositry for security. Except for these images a database is also needed. More on how everything is tied togheter in the section System Layout

Moodle Image

Our images are based on the official Ubuntu LTS images from Docker Hub. From Ubuntus official repositories we then install the following packages (dependencies not listed):

  • software-properties-common

  • ca-certificates

  • ghostscript

  • cron

  • curl

  • wget

  • unzip

  • locales

  • locales-all

  • net-tools

  • openssh-server

  • parallel

  • sassc

  • libmcrypt-dev

  • php-pear

  • unixodbc-dev

We are also adding a couple of external repositories, mainly to get utilities not provided by Ubuntu or more recent versions.

From https://launchpad.net/~zabuch/+archive/ubuntu/ppa we are adding the following packages (dependencies not listed):

  • moosh

From https://launchpad.net/~ondrej/+archive/ubuntu/nginx-mainline we are adding the following packages (dependencies not listed):

  • nginx

From https://launchpad.net/~ondrej/+archive/ubuntu/php we install our PHP packages. Exactly what packages we install depends on which PHP version is being used. (dependencies not listed):

8.0

8.1

Moodle 4.0

Moodle 4.0, 4.1, 4.2

php8.0-cli

php8.1-cli

php8.0-fpm

php8.1-fpm

php8.0-dev

php8.1-dev

php8.0-bcmath

php8.1-bcmath

php8.0-curl

php8.1-curl

php8.0-gd

php8.1-gd

php8.0-igbinary

php8.1-igbinary

php8.0-intl

php8.1-intl

php8.0-ldap

php8.1-ldap

php8.0-mbstring

php8.1-mbstring

php8.0-mysql

php8.1-mysql

php8.0-pgsql

php8.1-pgsql

php8.0-redis

php8.1-redis

php8.0-soap

php8.1-soap

php8.0-solr

php8.1-solr

php8.0-sqlite3

php8.1-sqlite3

php8.0-xdebug

php8.1-xdebug

php8.0-xml

php8.1-xml

php8.0-xmlrpc

php8.1-xmlrpc

php8.0-zip

php8.1-zip

php8.1-exif

php8.1-pdo-mysql

php8.1-pdo-pgsql

To get support for MS SQL Server we are adding Micrososfts repository https://packages.microsoft.com/ and are installing the following packages from it:

  • msodbcsql17

As part of the requirements for MS SQL Server we are also installing these packages through PHP PECL:

  • sqlsrv

  • pdo_sqlsrv

We are also installing a few utilities manually.

SSL Termination

The image doesn’t terminate SSL, it’s built with the intention that a reverse proxy or load balancer sits infront and is responsible for terminating SSL. We have a simple reverse proxy image you can use if so desired.

Our Reverse Proxy

We have created a simple nginx-based reverse proxy image you can use if you wish and it has built-in support for SSL-termination. While it’s most commonly paired with a secondary container that automates certficates from Let’s Encrypt there are no issues using it with your own certficiate regardless of provider. You can read more about this in section: Ports, Proxy & Varnish

Varnish

Just as we have a simple reverse proxy image we also have a customized image of Varnish specially configured for Moodle. You can read more about it in this section: Ports, Proxy & Varnish

Moodle Cron Image

Is basically a superset of the Moodle image but instead of starting the webserver it starts a cron service instead. The cron runs every minute and is responsible for the execution of the configured cron jobs in Moodle.

System Layout

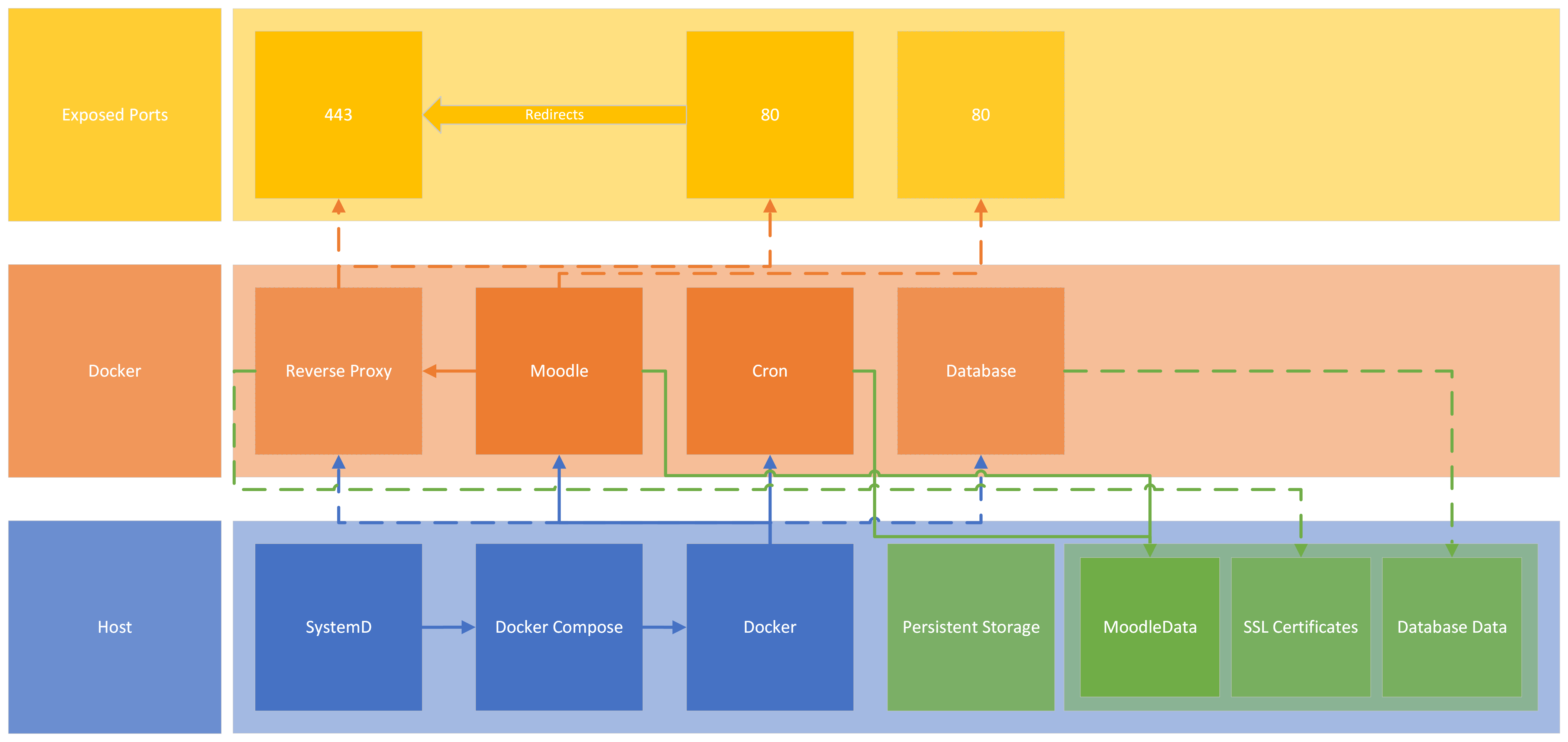

Here is a crowded illustration on how everything flows. Everything that’s more faded is optional, dashed lines are either optional or alterantives.

illustration of system layout

A red thread in the design is modularity. The reasoning behind this is to make it possible to scale the resources depending on load. An installation without high demands might be just one server that acts as both app server and database server. As an app server it would then run both the moodle and moodle-cron container and data would be stored directly on the host. Additionally it might also run a reverse proxy to enable SSL support.

In a more demanding situation things might be split. For instance there might be three app servers, one cron server, one read-write database, two read-only databases, a storage server and a load balancer. In this case the load balancer would terminate SSL, connect to one of the app servers. The app servers in turn would mount storage from the shared storage and also keep a local cache. They would also be configured to use the three different databases. The cron server would also be connected to the shared storage and the different databases.

There is also the possibilty to add more caching like Varnish and Redis.

These two are of course not the only options, they are more to the extreme opposite ends of a sliding scale.
